Description

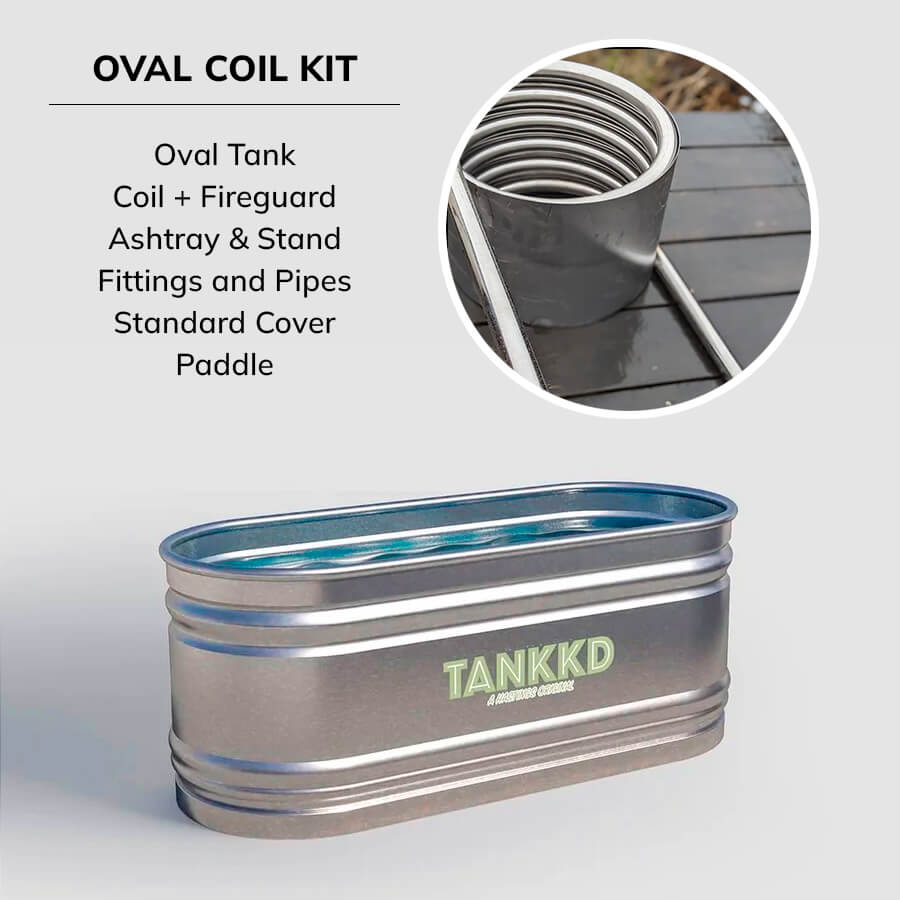

This package contains :
- Oval Green label Stock Tank
- 24mm tube heater coil with fireguard
- Heat-resistant hose
- Bulkhead connector
- Stands and ashpans
- Wooden Paddle
- Standard Cover
This package contains everything you need to set up your stock tank hot tub. With its quick disconnect format this package is light and easily transportable. Great for wild camping near a water source or bringing to a friend’s house.
The heater coils are made to order and can take up to 3 weeks for delivery. Please get in touch to get a n ETA.
* minor dents and scratches are inevitable during transport. This will not adversely affect the quality whatsoever and is part and parcel of the rustic and authentic appearance of these stock tanks. For technical reasons, the diameter of the products supplied may vary approx. 10 cm to 15cms from the specified diameter.
Please get in touch if you are looking for a heater coil for the bigger round stock tanks and we can give you a quote.
Coil details
25.4mm tube (1″) heater coil with fireguard
A fireguard will enhance the thermo-syphon effect of your heater coil, containing the heat of the fire and channeling airflow more effectively.
The heater coil: 6 metres of 1 inch (25.4mm) stainless 304 steel tube (with a 1.5mm wall)
inner diameter – 300mm outer diameter (including the fireguard) – approx. 362mm
approx. 170-230mm (6 coils) high – works well with both wood and charcoal
comes with 300mm tails (tail length is measured from the outermost edge of the coil to the end of the tail).
The fireguard: made from 0.9mm stainless steel sheet fitted and welded around the coil.
Tankkd Green Label
-Made with G90 steel = galvanised steel that has been subjected to a chemical process to prevent rusting.
-20GA Base and 22GA side walls = The side walls of the Tankkd Green label are slightly thinner than those of the Tankkd Black Label
– The base is attached to the side walls with a 4-layered sealed seam.
-Each tank has steel piping that runs all the way around the tank for extra stability.
– fitted with a screw cap to drain off water
– The Oval tanks are available in a variety of lengths to suit the above coil starting from 4foot to 6 foot
SAFETY INFO
Ensure that the coil is placed a safe distance from your hot tub and is both stable and secure. Please take particular care of how and where you use your heater coil in any settings where children or animals may be present – safety should be paramount at all times. Any attachments/ connectors/high temperature hose you choose to use should be well clear of the flames.
It is advisable to conduct a brief common sense safety check of the setup before firing the coil. The coil should be set away from any thoroughfare and flammable materials etc.
Please note that your cold water inlet and hot water outlet feeds must be below the water level in your hot tub at all times when your coil is in use. If the water line in your tub is below the level of your warm water outlet feed from your coil (or drops below it while you are using your tub) water will stop flowing through your coil and just sit in it, becoming extremely hot. This is called ‘dry firing’ the coil, which is extremely dangerous and will result in scalding hot water or steam coming out of the hot water outlet.
If you have a stocktank style hot tub, we would advise attaching it to your coil with the hot water outlet below the upper ripples in the tank.
